MS-DZ850C Technical Data of Punch Machine
One、Technical configuration：
Mechanical part | ||
1 | Clamping Electrode Diameter（mm） | Φ0.3-Φ3.0 |
2 | Spindle head stroke（mm） | 280 |
3 | Spindle servo stroke（mm） | 380 |
4 | Maximum adjusting speed of spindle（mm/min） | 1500 |
5 | Rotating speed of rotating head（rpm） | 0-200 Adjustable |
6 | Workbench dimensions（mm） | 1140*650 |
7 | X*Y Axis Travel(mm) | 800*500 |
8 | Maximum distance between guide and worktable（mm） | 300 |
9 | Maximum Workload（kg） | 800 |
10 | Outward Size of Main Engine（W*L*H） | 1800*1600*2100 |
11 | Weight（kg） | 1600 |
12 | Positioning accuracy XY(mm) | X.Y≤0.03/300 |
13 | Repeated positioning accuracy XY(mm) | X.Y≤0.04/300 |
14 | Moving speed XY（mm/min） | 1000 |
Electrical part | ||
15 | CNC Axis | X、Y、Z Three axis |
16 | Perforation Machining Shaft | Z axis |
17 | Maximum Processing Current（A） | 30 |
18 | Machining speed（mm/min） | 30-60 |
19 | Input maximum power（KW） | 4.5 |
20 | Minimum electrode consumption ratio | ≤0.8% |
21 | Optimum Surface Coarseness and Fineness(μm) | ≤Ra1.8 |
22 | Digital display mode | Three axis |
Filter water tank (optional) | ||
21 | capacity（L） | 110 |
22 | Net weight (kg) | 45 |
23 | Appearance size（W*L*H） | 920*460*750mm |
24 | Other instructions | Cyclic filtration |
Two、Main Performance Characteristics of Machine Tools
1、The system adopts industrial PC controller and mainstream win7 operating system.
2、The editing of drawings and the generation of processing documents are all completed in one computer to improve production efficiency.
3、PC display also has touch function, which is convenient and fast, and saves processing time.
4、Digital high frequency power supply, high efficiency, low consumption, stability.
5、It has the function of power-off memory and can not lose processing data under abnormal power-off.
6、There is no limit on the number of holes to be machined, and only a few seconds are needed to generate the processing program files.
7、The modular structure of the system is designed, the control modules are highly integrated, the reliability is greatly improved, and it is easy to disassemble, repair and replace.
8、Tungsten steel circuit, the processing speed of tungsten steel, copper pipe consumption is less.
9、When abnormal processing occurs, the alarm light signals.
10、XYZ three-axis precision ball screw, Z-axis linear guide.
11、Z axis has height setting function and simple operation, XYZ three-axis digital display.
12、System software can use 3B code, G code, NC code and other codes.
13、The X and Y axes are locked automatically after positioning and can be unlocked manually.
Three、Working Conditions of Equipment
1. Power supply: 380V + 10%, 50HZ + 10%
2. Ambient temperature: 2-40 C. room temperature is suggested to be 20 +1.
3. Relative humidity: <75% (no strong alkali, no strong electromagnetic field, no water vapor state)
4. Machine Tool Noise Level: <80db
5. The machine tool can work stably for a long time under the above working environment.

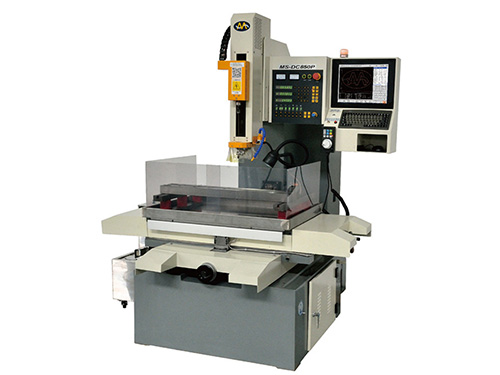

Four、Product Reference Picture
(Picture selection of water tank and external flushing device for circulating purification system)
Five、Out-of-factory packing list
No. | Name | Specifications | Number |
1 | Electrode-specific scissors |
| 1 handles |
2 | Double-headed screwdriver |
| 1 handles |
3 | Inner hexagonal wrench | M3 | 1 handles |
4 | Inner hexagonal wrench | M4 | 1 handles |
5 | Inner hexagonal wrench | M5 | 1 handles |
6 | Inner hexagonal wrench | M6 | 1 handles |
7 | Inner hexagonal wrench | M8 | 1 handles |
8 | Guider | Ф0.5mm | 1 only |
9 | Guider | Ф1.0mm | 1 only |
10 | Electrode tube | Ф0.5mm | 100 branches |
11 | Electrode tube | Ф1.0mm | 100 branches |
12 | Seal ring | Ф0-1.0mm | 20 only |
13 | Taiwan self-locking drill chuck | Ф0-3.0mm | 1 sets |
14 | Recirculating filter water tank | Matching | 1 stations |
15 | External flushing device | Matching | 1 sets |
16 | Bottom foot of machine tool | M16 | 4 only |
17 | Balanced strip rack |
| 1 payment |
18 | Baffle |
| 1 copies |
19 | An instruction manual |
| 1 copies |
20 | Plastic toolbox |
| 1 only |
